Cnc Rebar Stirrup Bender

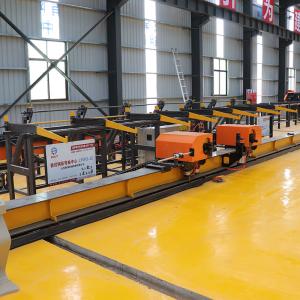

cnc rebar stirrup bender introduction
Fully automatic CNC steel bar bending machine can automatically complete the process of straightening, sizing, bending and cutting of steel bars. shape. With the continuous development of the CNC industry, more and more industries and enterprises have used the hoop bending machine, and more and more enterprises have entered the hoop bending machine industry.
It is mainly suitable for hooks and hoops of cold-rolled ribbed steel bars, hot-rolled tertiary steel bars, cold-rolled smooth steel bars and hot-rolled round steel bars. The automatic hoop bending machine has the characteristics of low equipment failure rate, fast bending of steel bars, low energy consumption without damage to ribs, low noise, light vibration, high efficiency and reliable operation, etc. Double operation, light and flexible, 3-5 times of manual bending.luyuanmachinery produce best quality rebar stirrup bender.
1. Bending forming mechanism
This site is mainly responsible for the forming of stirrups. Bend the sent rebar into the shape we set. The power source of this station is a servo motor. The steel bar can be bent in both forward and reverse directions, and the mandrel can be freely controlled to expand, up and down, and to change the size of the mandrel.
2. Quick cutting mechanism
This station is mainly responsible for the shearing action after the steel bar is formed. It consists of a motor and a pneumatic brake clutch. The cutting action is completed instantly after the cutting signal is obtained. The action is convenient and quick.
3. Vertical straightening mechanism
This station is mainly to adjust the vertical straightness of the steel bar. The straightening method of the roller type is used. Just adjust the depth of each group of rollers, you can easily straighten the vertical direction of the steel bar.
4. Automatic feeding mechanism
This station is mainly responsible for the wire feeding action of steel bars in the process of bending hoop. Two sets of rollers are driven by the servo motor to complete the wire feeding action. Actions are accurate and fast.
5. Horizontal straightening mechanism
This station is mainly to adjust the horizontal straightness of the steel bar. The mechanism is equipped with an automatic feeding device. The cylinder is used to press the roller to advance and retreat. The active roller is driven by a motor, and the action of the motor drives the steel bar to feed.
6. Pay-off stand
The function of the pay-off rack is to store the wires to be processed. It is divided into two types: standard type and heavy type:
Standard type:
The total height of the pay-off rack is 1600MM, the center diameter is 400MM, the maximum outer circle is 1600MM, and the maximum can store 500 kg of wire.
7. Machine console
The console of this machine consists of a dedicated CNC system and push-button switches. The CNC system has the functions of automatically generating graphics, counting and other functions. The graphical operation interface is more intuitive and user-friendly and easy to operate. The automatic fault identification and alarm function can make you more convenient and quick to maintain the equipment. The size of this console is L900*T400*W800.
8. Optional parts
Regulator system:
This system is mainly designed and matched for some areas with unstable voltage. After installing this system, the voltage of the machine is applicable
The range is 300V~450V.
High hardness roller set:
SKD11 roller. Quenching and tempering heat treatment HRC60º±2º.
Weighted pay-off stand:
The total height of the pay-off rack is 2400MM, the center diameter is 600MM, the maximum outer circle is 1600MM, and it can store up to 2500 kg of wire. It is equipped with brakes and buffer devices, which can prevent the pay-off rack from being randomly stopped due to unexpected shutdown.
shandong zhongji luyuan machinery co.,ltd,which is professional stirrup bender manufacturers.we can supply the 12mm 14mm 16mm 20mm stirruo bender ,any type stirrup bender can be customized for customers requirement.
